Talking with Computers

Overview

Questions

• How do computers store information?
• Where does text come from, if computers only store numbers?
• What are encodings?

Objectives

• Learn how computers store data, and how that data becomes something you can read on your screen.
• See that binary, hexadecimal and text are three ways of writing the same thing.

How do we analyse file formats

---

To analyse a file we look at the hexadecimal of the file, there are a few reasons for this: * It is easier to read than binary * It doesn’t vary in the way different encoding can

But what is binary, what is hexadecimal and what are encodings?

Let’s start at the beginning

---

Computers are built from billions of tiny electronic switches called transistors.

Like a light switch, each transistor has two possible states:

• On
• Off

  To make these states easier to work with, we represent them as:

• On = 1
• Off = 0

These 1s and 0s are called binary digits, or bits. A single bit can only store one of two values: 0 or 1

These are usually what you can see when a spy is breaking into a computer in an action movie

A photograph is also a long row of bytes.

What is behind your computer data?

• Computers combine the bits together, representing letters, numbers, images, sound, video, software and the information you see on a screen
• We call 8 of these bits grouped together a byte: 01001001
• This is the data that computers are interpreting
• Based on the order of the 0s and 1s in a byte they represent a single number
• There are 256 variations of 0s and 1s that can be stored in a byte
• 0 (b00000000) is the smallest number you can represent in binary in a single byte,
• 255 (b11111111) is the largest possible value.

The dog and the hex are the same file. One of them is what your software renders for you. The other is what is actually sitting on the disk. Everything we do from here happens on the right hand side.

Solving the communication barrier

• Computers combine the bits together, representing letters, numbers, images, sound, video, software and the information you see on a screen.
• Computers ultimately store everything as binary
• Binary is difficult to read, so we convert the bytes into a numeric system called hexadecimal. We choose hexadecimal because there are more options than the decimal counting system we are used to.

Why hexadecimal?

---

Although computers use binary, humans find long strings of 1s and 0s difficult to read. For example:01001001 is not particularly memorable. Hexadecimal provides a shorter way of representing the same data. The binary value: 01001001 can also be written as: 49

Encodings

---

So if a byte is only ever a number, where does the letter I live? It doesn’t. Nothing in a byte is a letter. To store text on a computer we use an encoding, and an encoding acts as a translation table between characters and numbers. We agreed that 73 means I, and everything that reads the file agrees too.

Character	Decimal	Hexadecimal	Binary
I	73	49	01001001

All four columns are saying the same thing.

The table we’re using here is ASCII. It covers the English alphabet, the digits, some punctuation and a handful of control codes, and that is all it covers. In the olden days software developers only thought about English, so that was fine. It was not fine for most of the planet.

Where do you get ‘ā’, or ‘世’?

---

Today we have Unicode, and encodings like UTF-8 that store those characters using more than one byte each. We’ll see what that looks like in the next episode.

Discussion

Do you have a favourite letter/ number/ symbol/ emoji? Try looking up your favourite in hex or binary.

When the agreement breaks down

There are many different encodings. A file written with one encoding and read back with a different one is not broken. Its bytes are fine. They are just being looked up in the wrong table.

That is where ’ and ä come from, and why a name with a macron in it can arrive in your catalogue looking like nonsense.

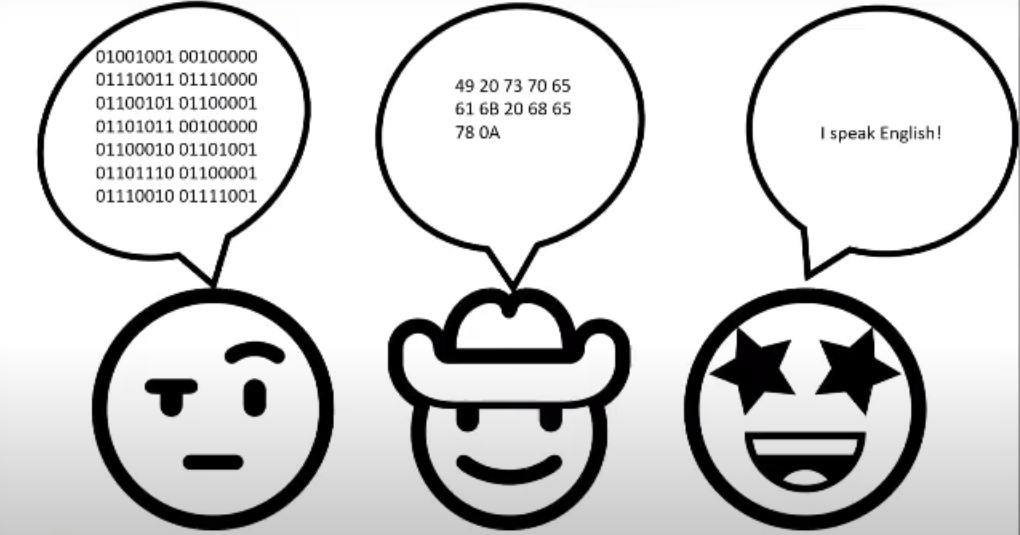

The same sentence spoken in binary, in hexadecimal, and in English.

Example Māori macrons in UTF-8

0xC4 0x81 = ā

0xC4 0x93 = ē

0xC4 0xAB = ī

0xC5 0x8D = ō

0xC5 0xAB = ū

0xC4 0x80 = Ā

0xC4 0x92 = Ē

0xC4 0xAA = Ī

0xC5 0x8C = Ō

0xC5 0xAA = Ū

Hello World in Japanese in UTF-8

0xE3 0x81 0x93 = こ

0xE3 0x82 0x93 = ん

0xE3 0x81 0xAB = に

0xE3 0x81 0xA1 = ち

0xE3 0x81 0xAF = は

0xE4 0xB8 0x96 = 世

0xE7 0x95 0x8C = 界

Key Points

• Computers store everything as bits: switches that are either on or off.
• 8 bits make a byte, and a byte holds one of 256 values.
• Binary, hexadecimal and encodings such as UTF-8 or ASCII are three ways of writing the same thing.
• Hexadecimal is the one we work with in file format analysis.
